ABB, UFC721AE ,3BHB002916R0001, PCB, DCS, Module

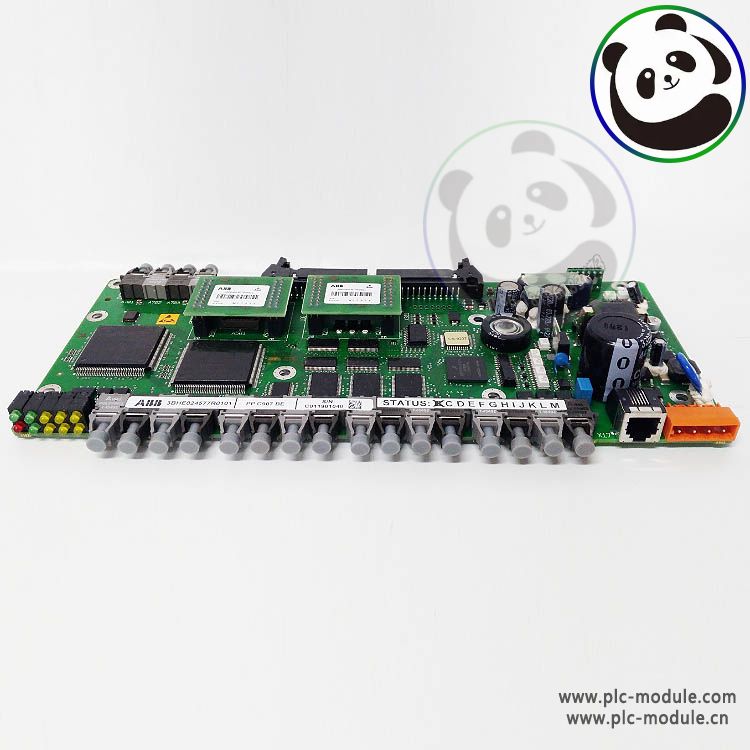

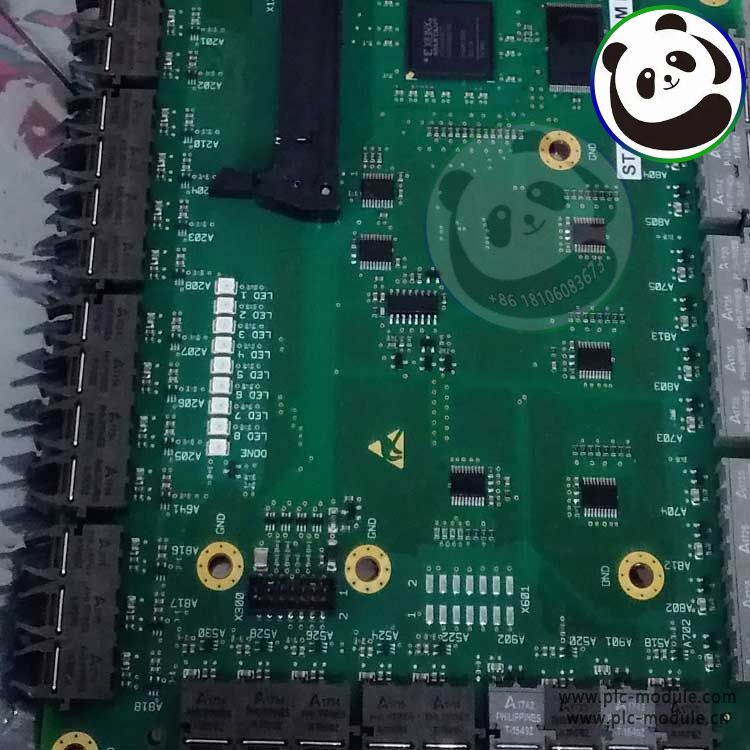

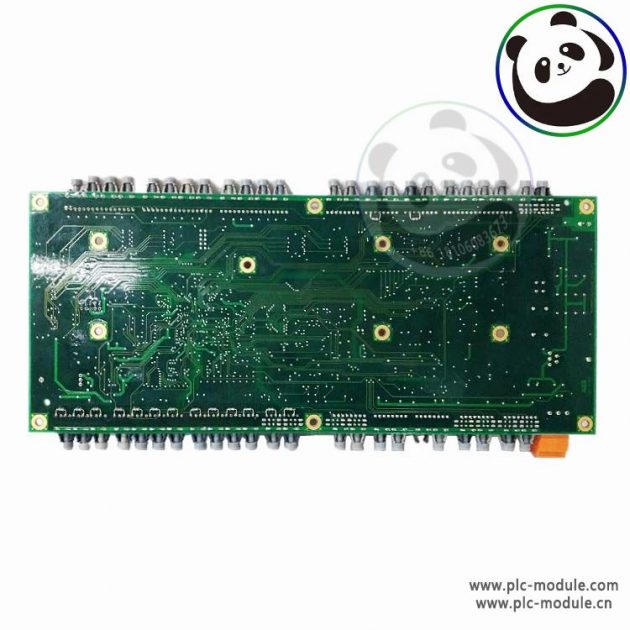

ABB UFC721AE 3BHB002916R0001 PCB DCS Module.he ABB UFC721AE is an output module used in automation equipment. It can process digital and analog signals that are received from sensors and other input devices. The module is manufactured by ABB, a Swiss company that provides automation solutions for various industries.UFC721AE module is capable of processing both digital and analog signals. Digital signals are binary (on/off) signals that can be used to represent simple data such as switch states or status indicators. Analog signals, on the other hand, are continuous signals that can represent more complex data such as temperature, pressure, or speed. Analog signals are typically represented by voltage or current levels, and require additional processing to convert them into digital signals that can be processed by the module.

ABB UFC721AE 3BHB002916R0001 module has several input and output points that can be used to connect to sensors and other input devices. The input points are used to receive digital and analog signals, while the output points are used to send digital signals to other devices that are connected to the module. The module can be programmed to process the input signals and generate appropriate output signals based on the programmed logic.

When designing a system that uses the UFC721AE module, it is important to consider the layout of the components. The components that are related to each other should be placed as close as possible to minimize the length of the wiring and reduce the potential for interference. Proper grounding and shielding techniques should also be used to minimize the effects of electromagnetic interference.
