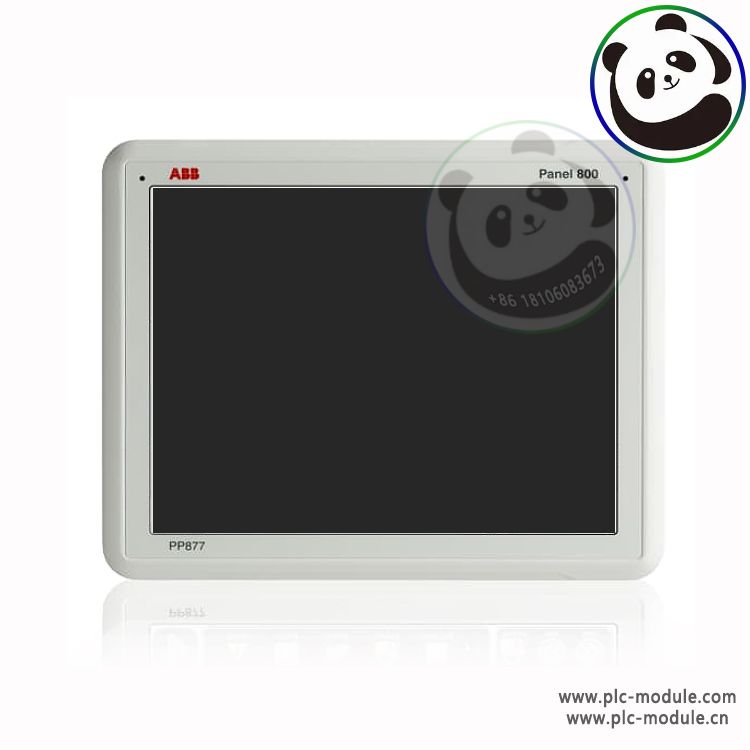

The ABB touch screen PP877 3BSE069272R2 Panel 800 has a 10.4″ screen size. It is part of the Panel 800 Version 6, which is designed for cost-effective, safe and efficient monitoring and controlling of complex HMI applications. The Panel 800 Version 6 has built-in functions such as displaying and controlling text, dynamic indication, time channels, alarm, and recipe handling. The panel works primarily in an object-oriented way, making it easy to understand and use. Configuration is carried out on a PC using the Panel Builder configuration tool. The project can then be transferred and stored in the operator panel itself.
The PP877 3BSE069272R2 touch screen contains air, and in rare cases, bubbles can arise. This is purely cosmetic and does not affect any functionality of the operator panel. The appearance can occur under certain environmental conditions such as temperature, humidity, and atmospheric pressure. During use, keep the operator panel clean, do not use excessive force or sharp objects when operating the touch screen, and note that emergency stop and other safety functions may not be controlled from the operator panel.
These panels provide improved process visibility through high-resolution widescreen in 7”, 10.1”,12.1”, 15.4” and 21.5” TFT/LED display, quicker access to multiple applications and an easy-to-use touchscreen interface.
Panel 800 features and benefits
Display
The high-resolution TFT-LCD display produces sharp and detailed images and views from all angles. State-of-the-art graphics including animated labels, roller panels, action menus increase efficiency and operator interactions by displaying a large amount of important information in a very small area. The ability to view real-time process values in a wide variety of graphical forms helps operators detect discrepancies faster, compared to viewing them in numerical read-outs. This promotes fast decision and action.
