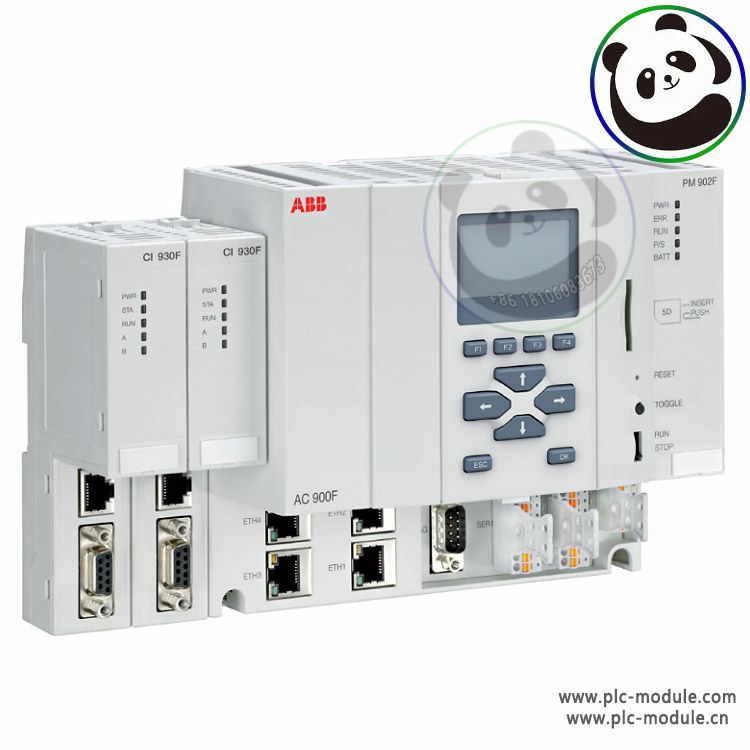

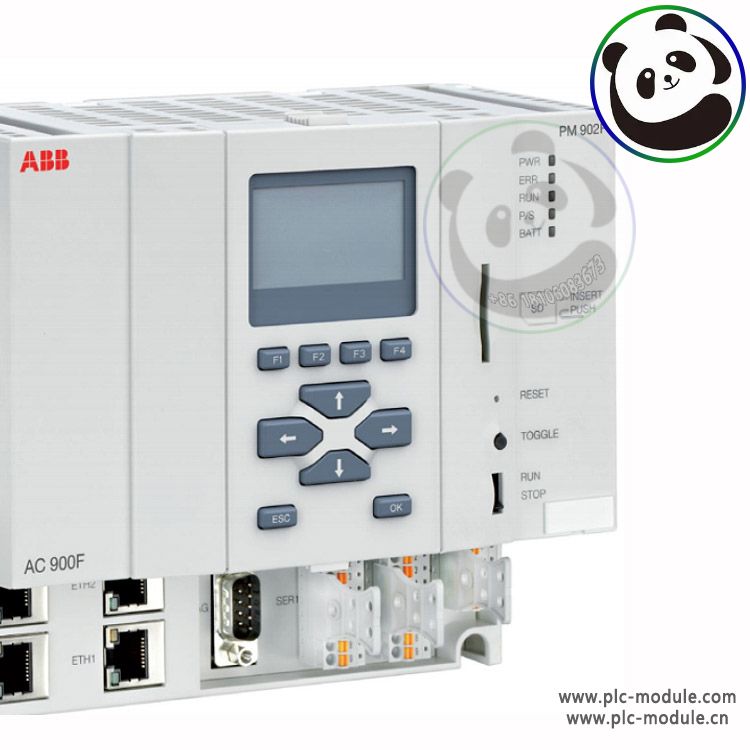

ABB PM902F 3BDH001000R0001 CPU Module PM 902F AC900F Controller

ABB PM902F 3BDH001000R0001 CPU Module PM 902F AC900F Controller Central Processing Unit .

This CPU module is a medium sized basic unit of the Freelance AC 900F controller series. It supports up to 1500 I/ OS and 8 MB battery buffered SRAM.4 Ethernet interfaces, 800 MHz CPU clock,24 MB controller memory, 8 MB battery buffered SRAM, 16 MB DRAM.2 slots for assembling the communication interface module.It doesn’t have an operating system. The operating system must be loaded during software installation.An external 24 VDC power supply is required.Software version 2013 or higher is mandatory.

• 4 Ethernet interfaces, 800 MHz CPU clock,
• 24 MB controller memory, 8 MB battery buffered SRAM, 16 MB DRAM.
• 2 slots for assembling the communication interface module.
• No operating system. The operating system must be loaded during software installation.
• An external 24 VDC power supply is required.
• Software version 2013 or higher is mandatory.
• White shell.
• Display unit TD 951F and battery TA 951F are not included
