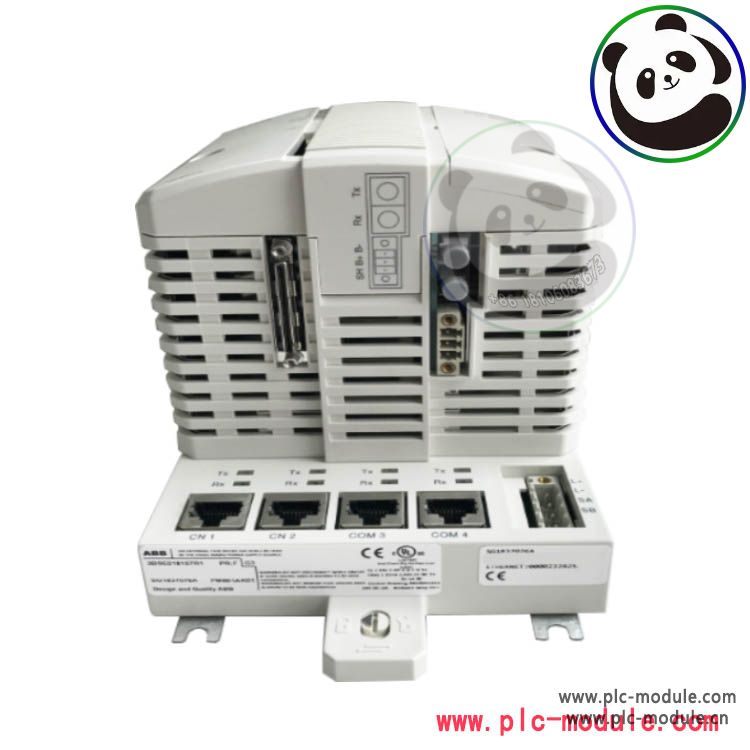

ABB PM867K01 3BSE076355R1 Processor Unit HI Module

Here are some key features and specifications of the ABB PM867K01 3BSE076355R1 Processor Unit HI Module [800xahardwareselector.com, 3, 6, 10]:

• Article number: 3BSE076355R1 (PM867K01)
• Redundancy: No
• High Integrity: Yes
• Clock Frequency: 133 MHz
• Performance, 1000 boolean operations: 0.09 ms
• Memory: 64 MB
• RAM available for application: 46.559 MB
• Flash memory for storage: No
• Processor type: MPC866
• Switch over time in red. conf.: Max 10 ms
• No. of applications per controller: 32
• No. of programs per application: 64
• No. of diagrams per application: 128
• No. of tasks per controller: 32
• Number of different cycle times: 32
• Cycle time per application programs: Down to 1 ms
• Flash PROM for firmware storage: 18 MB
• Power supply: 24 V DC (19.2-30 V DC)
• Power consumption +24 V typ/max: 210 / 360 mA
• Power dissipation typ.: 5.1 W (8.6 W max)
• Redundant power supply status input: Yes
• Built-in back-up battery: Lithium, 3.6 V
• Clock synchronization: 1 ms between AC 800M controllers by CNCP protocol
• Event queue in controller per OPC client: Up to 3000 events
• AC 800M transm. speed to OPC server: 36-86 events/sec ,113-143 data messages/sec
• Comm. modules on CEX bus: 12
• Supply current on CEX bus: Max 2.4 A
• I/O clusters on Modulebus with non-red. CPU: 1 electrical, 7 optical
• I/O clusters on Modulebus with red. CPU: 0 electrical + 7 optical
• I/O capacity on Modulebus: Max 96 (single PM867) or 84 (red. PM867) I/O modules
• Modulebus scan rate: 0 — 100 ms (actual time depending on number of I/O modules)
• Supply current on Electrical Modulebus: 24 V: max 1.0 A; 5 V: max 1.5 A
• Ethernet channels: 2
• Ethernet interface: Ethernet (IEEE 802.3), 10 Mbit/s, RJ-45, female (8-pole)
• Control Network protocol: MMS (Manufacturing Message Service) and IAC (Inter Application Communication)
• Recommended Control Network backbone: 100 Mbit/s switched Ethernet
• Real-time clock stability: 100 ppm (approx. 1 h/year)
• RS-232C interface: 2 (one general, 1 for service tool)
• RS-232C interface (COM3) (non red. only): RS-232C, 75-19 200 baud, RJ-45 female (8-pole), not opto isolated, full RTS-CTS support
• RS-232C interface (COM4) (non red. only): RS-232C, 9 600 baud, RJ-45 female (8-pole), opto isolated, no RTS-CTS support
• Width: 119 mm (4.7 in.)
• Height: 186 mm (7.3 in.)
• Depth: 135 mm (5.3 in.)
• Weight (including base): 1200 g (2.6 lbs)
• Temperature, Operating: +5 to +55 °C (+41 to +131 °F)
• Temperature, Storage: -40 to +70 °C (-40 to +158 °F)
• Temperature changes: 3 °C/minutes according to IEC/EN 61131-2
• Pollution degree: Degree 2 according to IEC/EN 61131-2
• Corrosion protection: G3 compliant to ISA 71.04
• Relative humidity: 5 to 95 %, non-condensing
• Emitted noise: < 55 dB (A)
• Vibration: 10 < f <
•
