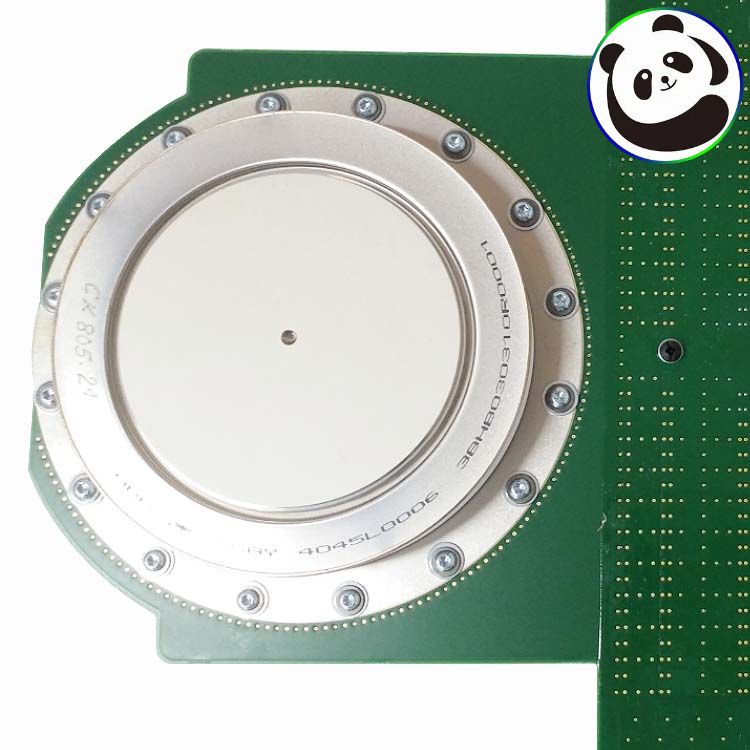

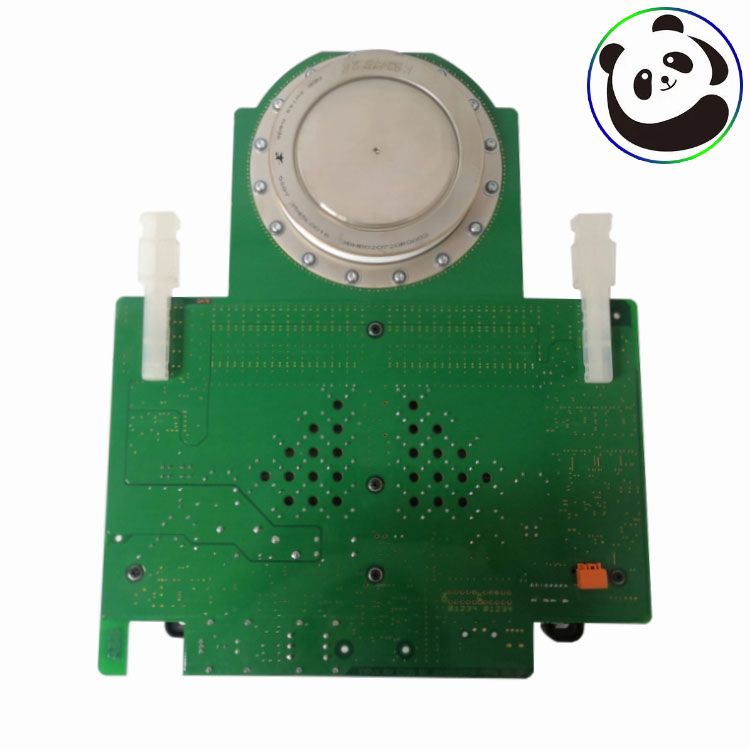

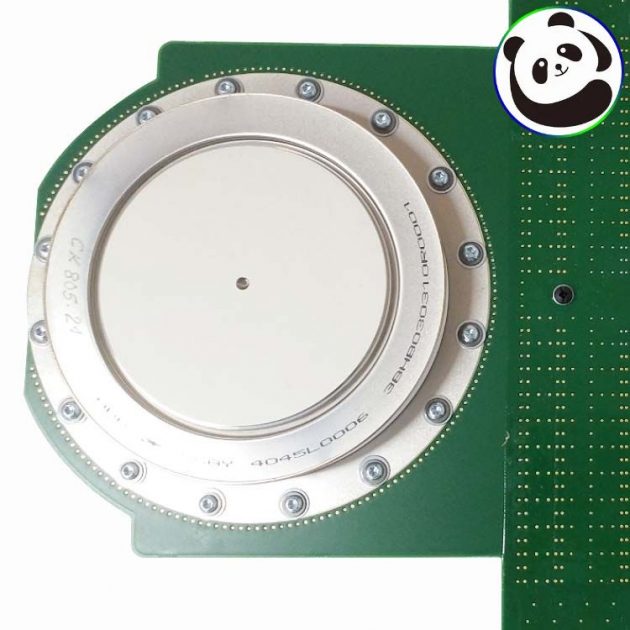

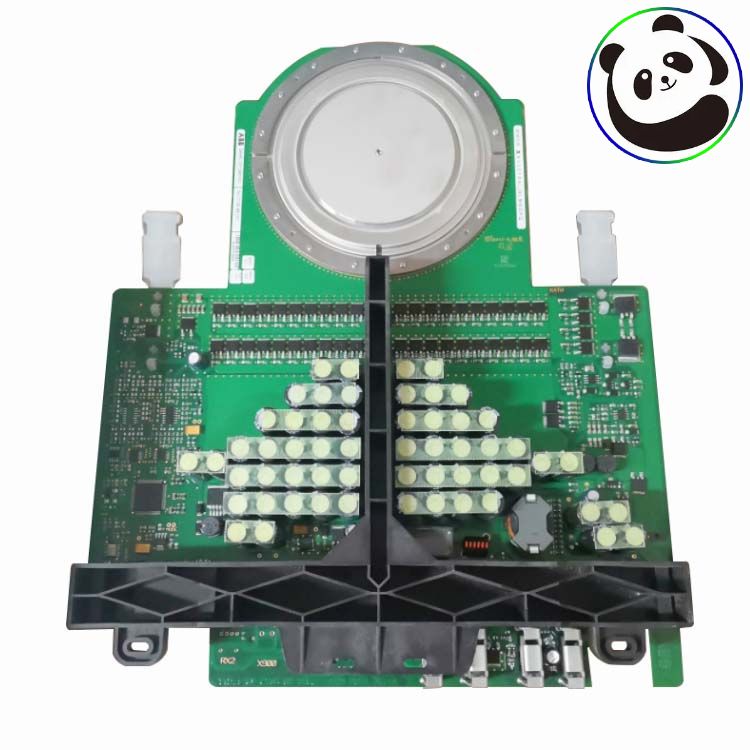

The ABB IGCT 5SHY3545L0016 Semiconductor Module is a type of IGCT (Integrated Gate-Commutated Thyristor) module that is designed to be used in medium frequency (< kHz) applications and in a wide temperature range. It has a simple control interface with status feedback and can be supplied with either AC or DC voltage.
IGCTs are a type of power electronic device that combines a thyristor and a transistor in a single package. They are used in high power applications where fast switching, high efficiency, and low losses are important. IGCTs are used in applications such as motor drives, renewable energy systems, power transmission, and traction systems.

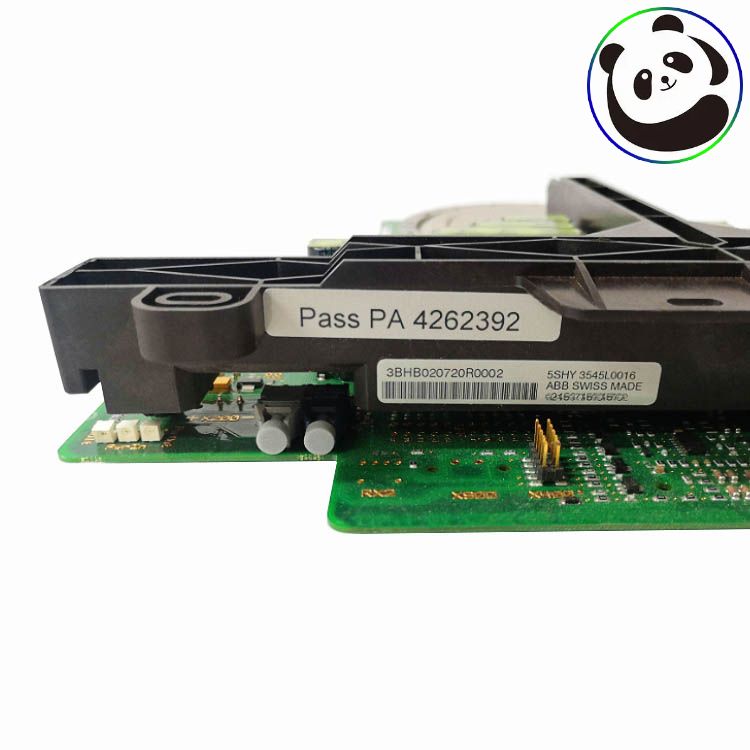

ABB IGCT Module 5SHY3545L0016 3BHB020720R0002 With board model:3BHE019719R0101 GVC736BE101
Asymmetric Integrated Gate Commutated Thyristor
High snubberless turn-off rating
Optimized for medium frequency (<l kHz) andwide temperature range
High reliability
High electromagnetic immunity
Simple control interface with status feedbackAC or DC supply voltage
Contact factory for series connection
