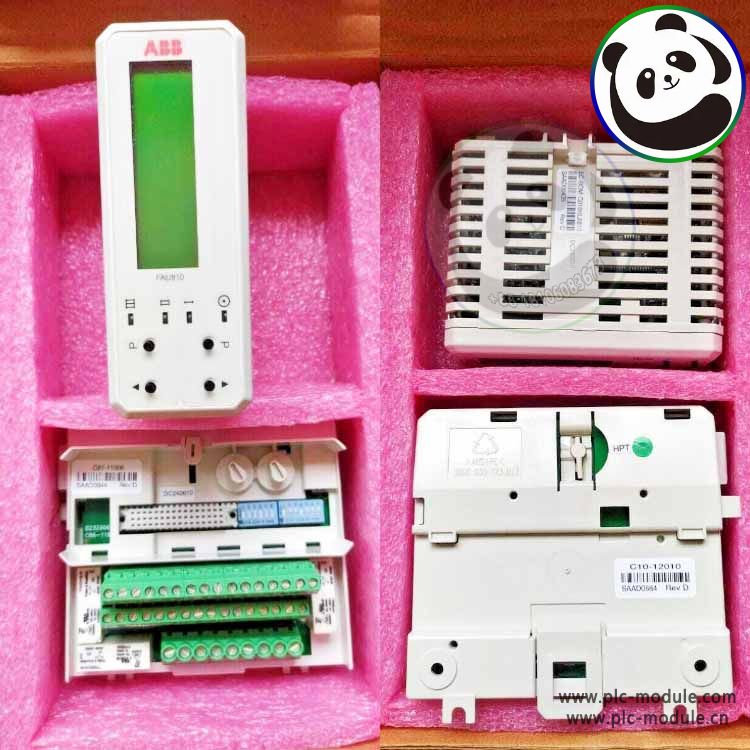

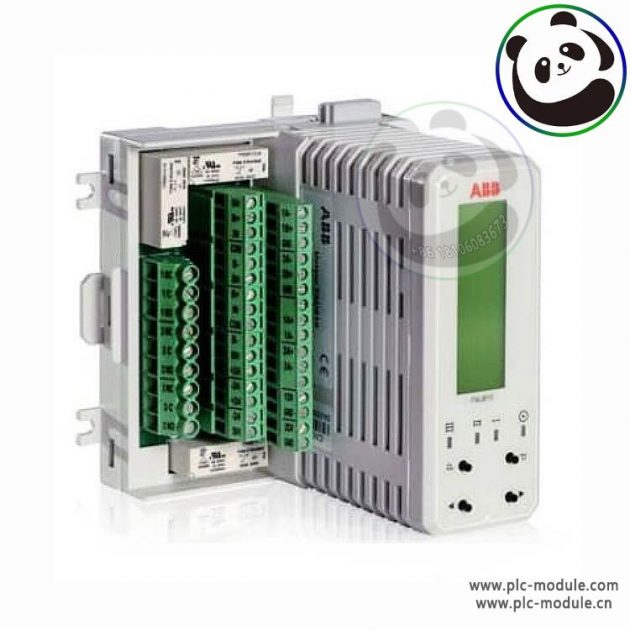

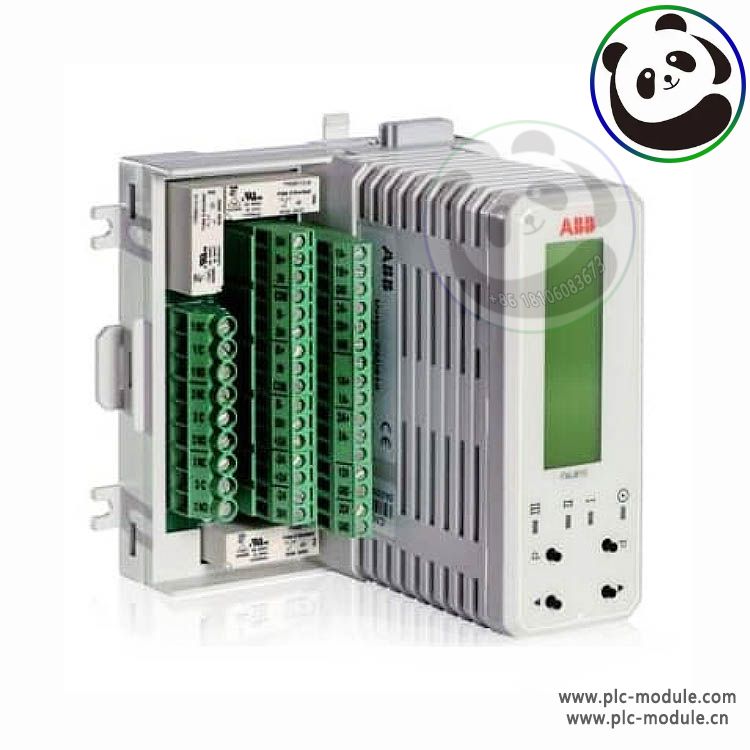

The ABB FAU810 C10-12010 is a Flame Analysis Unit module used for flame detection and analysis in industrial and utility boilers. Here are some key points to keep in mind:
- The FAU810 is a dual-channel complete assembly with dual Profibus DPV1 and CI capability CE-FM
- It can process any type of ABB Flame sensing device, from the legacy DFS scanner to the latest single and multisensor Uvisor TM SF810
- The FAU810 is designed for maximum flexibility, usability, and reliability. It takes advantage of the latest technologies available to make flame analysis as cost-efficient as possible, while retaining ABB’s rock-solid reputation as the most reliable instruments in the industry.
- Each Flame Analysis Unit consists of two independent channels, each of which can receive and process a Flame Detector signal. The two Detectors may be in any combination of the following designs: All DFS Flame scanner heads, 4 – 20 ma sensor heads, 0 – 5-volt sensor heads, and ABB Flame Rods (Ionic Flame Monitoring)
- The FAU810 is easy to install and configure, flexible to operate, and uses redundant Profibus DP-V1 or standard Modbus interfaces for easy and safe data exchange and tuning.
- The FAU810 can define various limits to account for any situation that may occur in utility or industrial boilers
- The FAU810 has two channels of 4-20 mA signals. Each channel may independently monitor Intensity, Frequency, Quality, or AC Amplitude. It also has two Galvanically isolated RS-485 interfaces (fully independent for redundancy) and screw terminals, compression type, accepting 12 to 20 wire gage
ABB FAU810 FLAME ANALYSIS UNIT with BASE & MODULE C87-11006, EC-BOM-G018HLA810：
