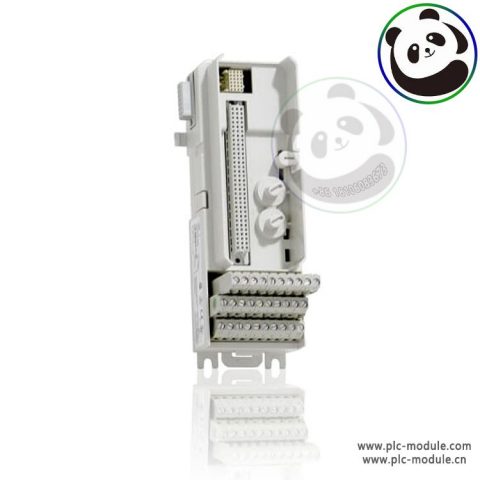

The ABB DO810 3BSE008510R1 is a digital output module with 16 channels and a maximum continuous output current of 0.5 A. It is isolated in two groups of 8 channels, and each group has its own voltage supervision input. The output voltage range is 10 to 30 V and the outputs are protected against short circuits, overvoltage, and overtemperature. The module is designed to be used with the ABB TU810V1 3BSE013230R1 termination unit. Here are the steps to use the module:
Connect the module to the controller: The DO810 module should be connected to the controller using the ModuleBus interface. The controller should be programmed to send commands to the module to set the output state.

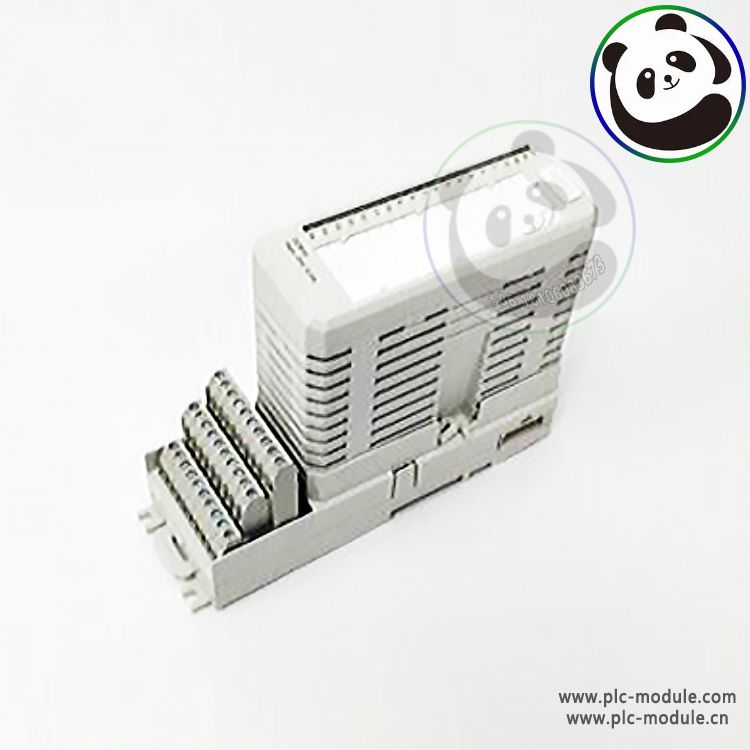

ABB DO810 With TU810V1
