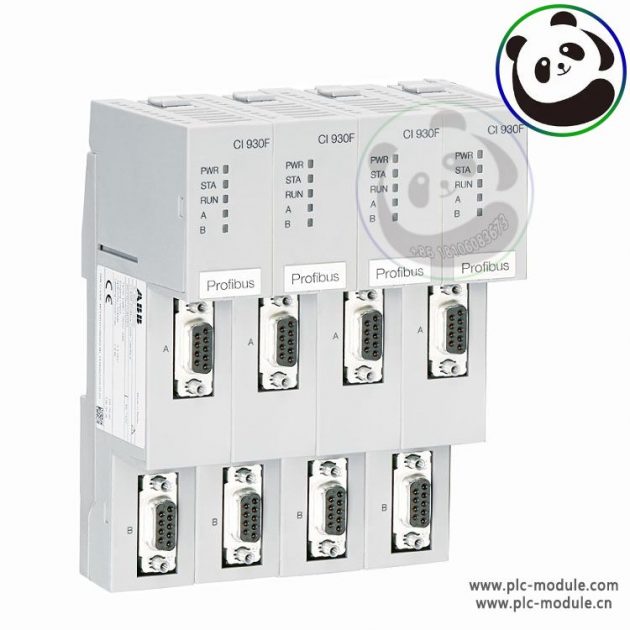

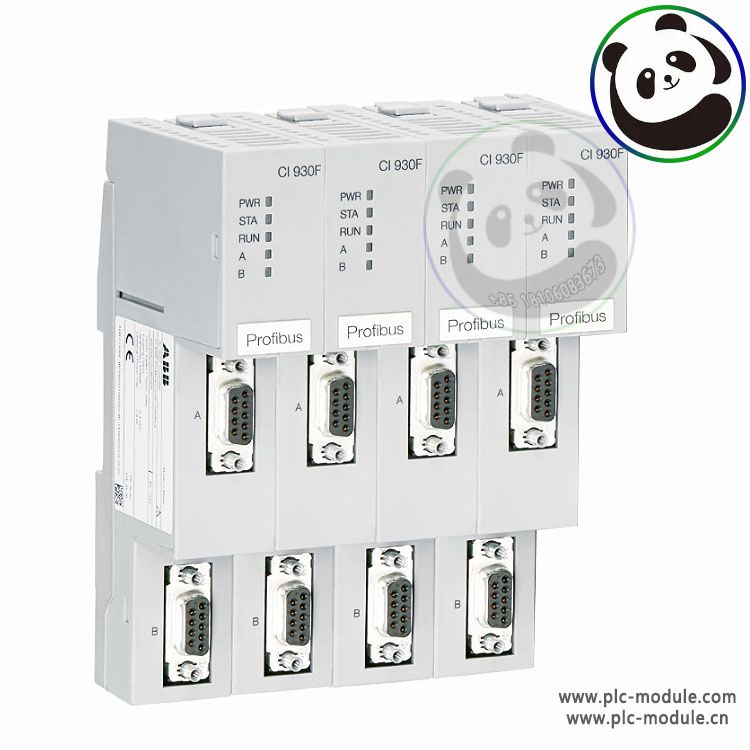

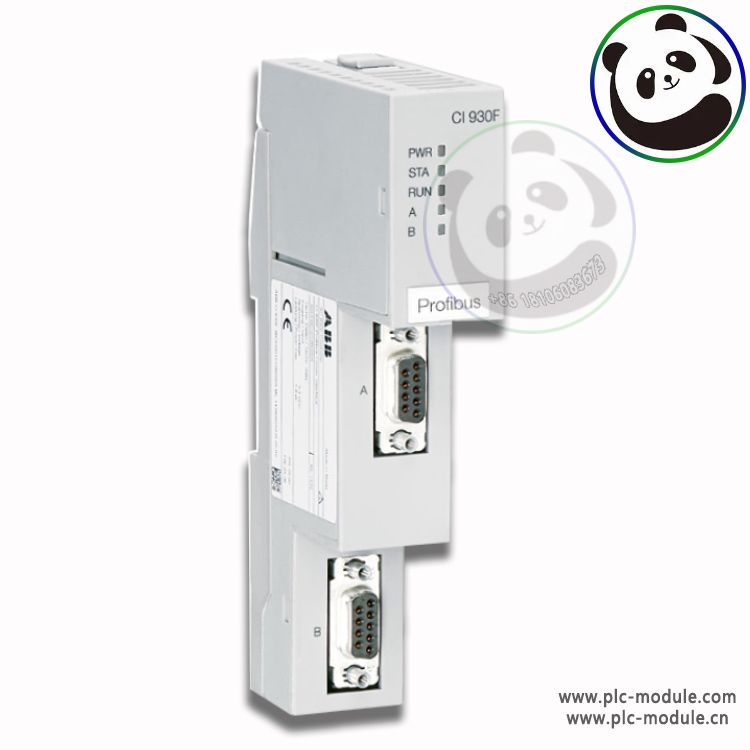

ABB CI930F 3BDH001010R0002 Pfofibus Comm interface CI 930F

ABB CI930F 3BDH001010R0002 Pfofibus Comm interface.PROFIBUS master module of DP-V0/V1, 12 MBit/s. Support for PROFIBUS line redundancy Two D-Sub terminals (9 poles), one for each A/B wire. Software version 2013 or higher is mandatory.

The code «3BDH001010R0002» refers to a product from ABB, a company that specializes in automation and power technologies. From the sources provided, we can gather the following information about this product:

• The product type is CI930F PROFIBUS DP Master Module [1] and it requires one coupler bus slot on the CPU module [3].
• The communication interfaces CI 930F provides two on-board PROFIBUS interfaces A/B for increased availability regarding PROFIBUS communication. DP-V0/V1, 12 MBit/s [1].
• This product is part of the Freelance AC 900F controller family [2].
• It supports DP-V0/V1, 12 MBit/s and PROFIBUS line redundancy [1].
• It is a medium base unit that supports up to 1500 I/O, 4 Ethernet interfaces, 800 MHz CPU clock, 24 MB Controller Memory, 8 MB battery buffered SRAM, and 16 MB DRAM [2].
• It comes without an operating system

DP-V0/V1, 12 MBit/s. Support for PROFIBUS line redundancy Two D-Sub terminals (9 poles), one for each A/B wire. Software version 2013 or higher is mandatory.
