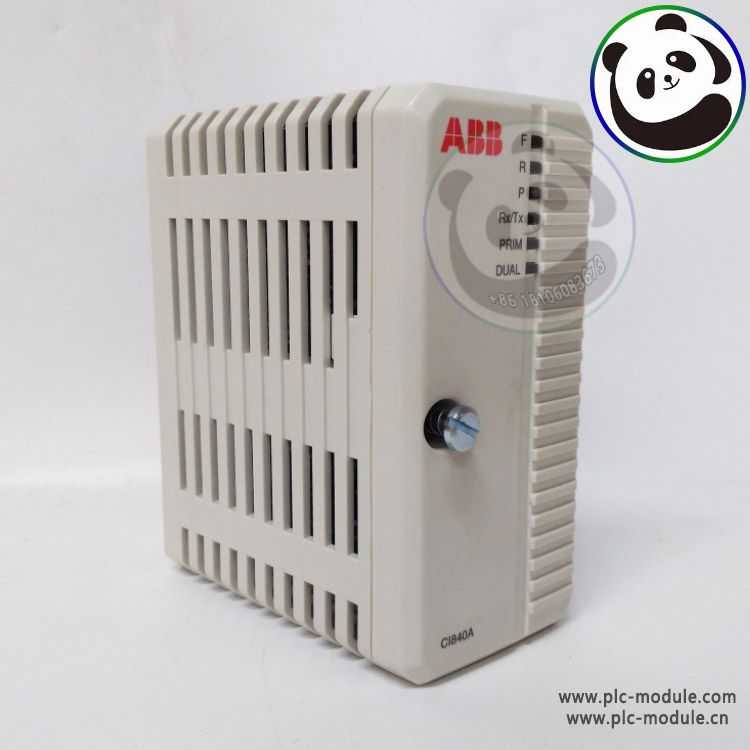

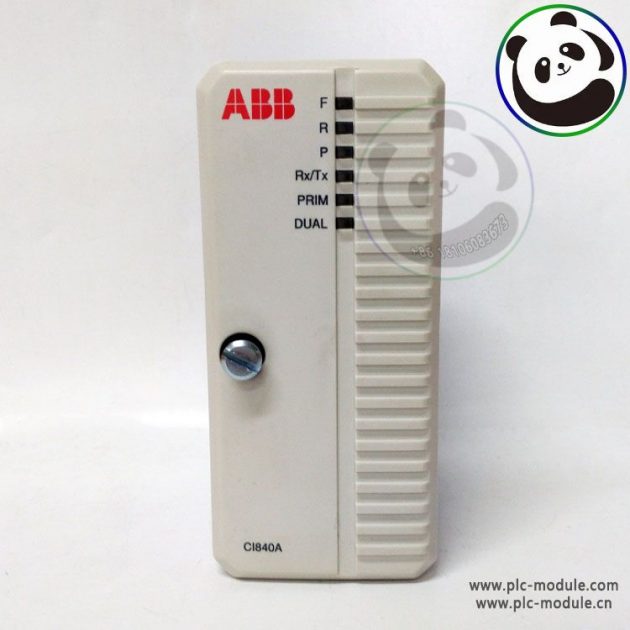

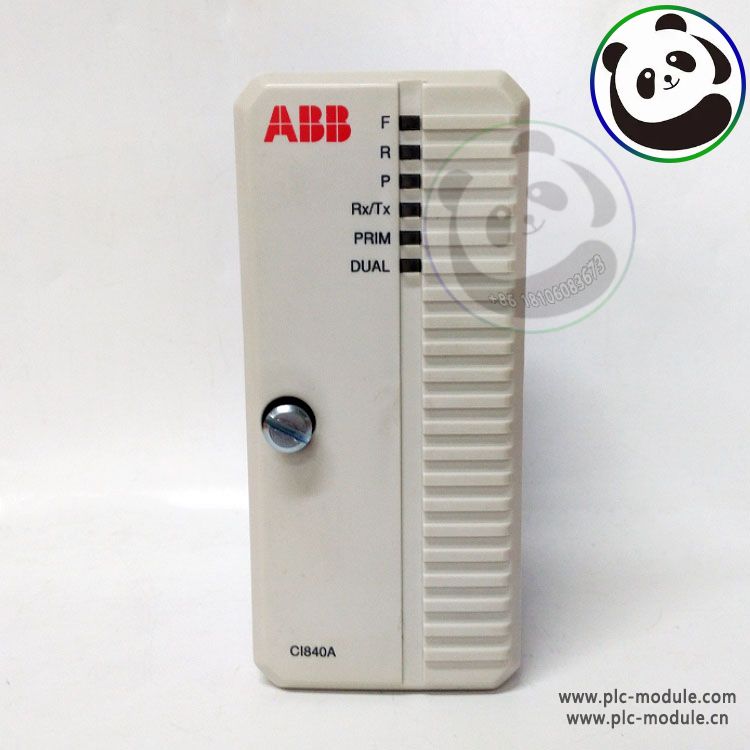

ABB CI840A 3BSE041882R1 Communication Module PROFIBUS S800 I/O is a comprehensive, distributed and modular process I/O system that communicates with parent controllers and PLCs over industry-standard field buses. The CI840 Fieldbus Communication Interface (FCI) module is a configurable communication interface that performs operations such as signal processing, gathering of various supervision information, OSP handling, Hot Configuration In Run, HART pass-through and configuration of I/O modules. CI840 is designed for redundant applications. The FCI connects to the controller by way of the PROFIBUS-DPV1 fieldbus. Module termination units to use, TU846 with redundant I/O and TU847 with non-redundant I/O.
3BSE041882R1 is a product ID for the ABB CI840A PROFIBUS DP-V1 Interface [0] [1]. This interface is used for redundant communication and requires two CI840A, and one TU847 or one TU846 to be ordered.
PROFIBUS DP-V1 is a fieldbus protocol used in automation technology [5]. The CI840A PROFIBUS DP-V1 interface is used for communication between the AC 800M controller and the fieldbus
The TU847 and TU846 are termination units used for connecting the CI840A interface to the fieldbus [7]. TU847 is used for redundant I/O and TU846 is used for non-redundant I/O [4].
The ABB CI840A interface supports different fieldbus protocols like PROFIBUS DP-V1, Modbus RTU, and HART [6]. This makes it a versatile interface that can be used in different applications.
