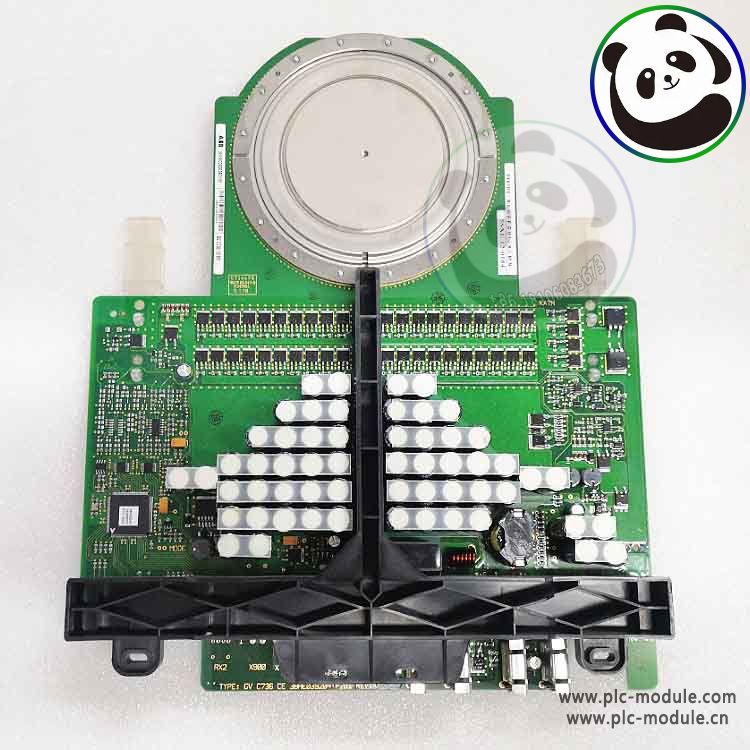

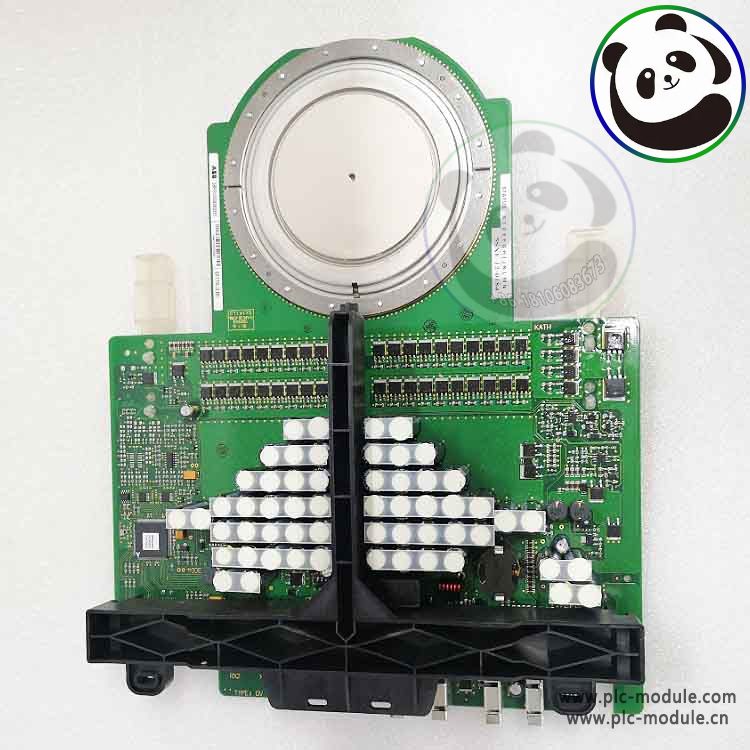

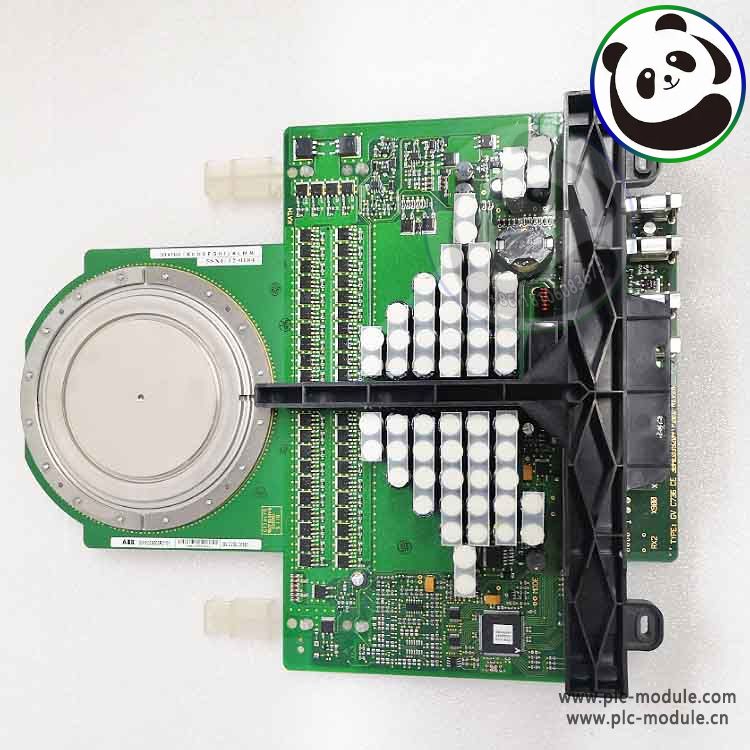

ABB 5SHY 4045L0006 IGCT 4500V 91MM 3BHB030310R0001

• The product ID is 3BHB030310R0001.
• The ABB type designation is 4500V, 91mm, 5SHY 4045L0006
• The module is an IGCT module .

IGCTs are high-power semiconductor devices that can handle large amounts of current and voltage, making them suitable for use in high-power applications such as motor drives, wind turbines, and power transmission systems. They are similar to IGBTs (Insulated Gate Bipolar Transistors) in function but have a different structure and characteristics. Here are some key points to know about IGCTs:

• IGCTs are a type of thyristor, which is a four-layer semiconductor device
• They consist of two thyristors that are connected in parallel with a gate turn-off (GTO) structure.
• The GTO structure allows for fast switching and turn-off of the device
• IGCTs have a high current density and can handle high peak currents.
• They can also operate at high temperatures and have low switching losses_{ABB 5SHY 4045L0006 IGCT 4500V 91MM 3BHB030310R0001}

  ACS 6000: Some building blocks



  Power Electronic Building Block (PEBB),  one phase leg of a three-level Voltage Source  Inverter (VSI) topology to be configured to act  as an AC to DC or DC to AC converter
