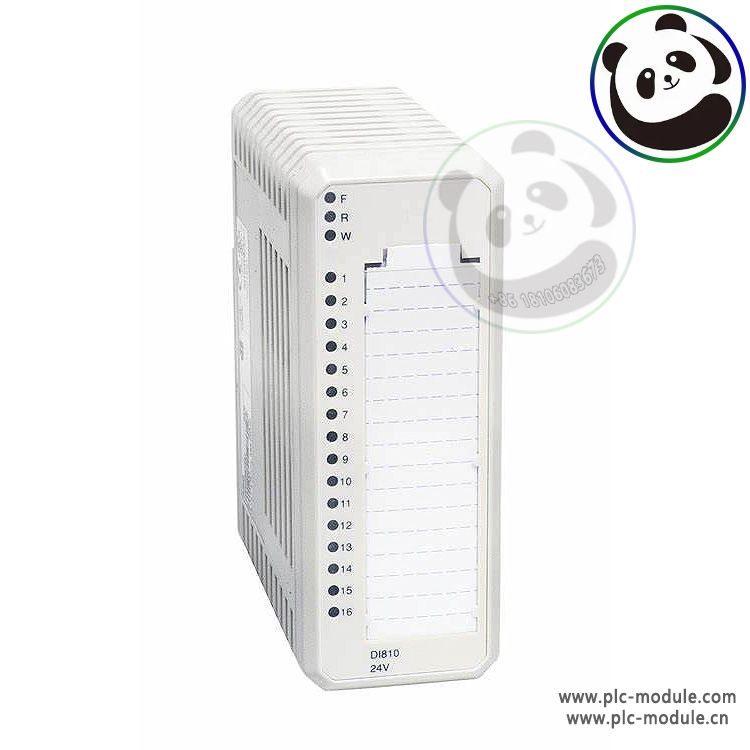

ABB S800 I/O DI810 3BSE008508R1 Digital Input 24 V DC 16 Channels Module

ABB S800 I/O DI810 3BSE008508R1 Digital Input 24 V DC 16 Channels Module.This module has 16 digital inputs. The input voltage range is 18 to 30 volt d.c. and the input current is 6 mA at 24 V. The inputs are divided into two individually isolated groups with eight channels and one voltage supervision input in each group. Every input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read via the ModuleBus.

MTUs that match this product：TU810V1 3BSE013230R1
